Protective Well Enclosures

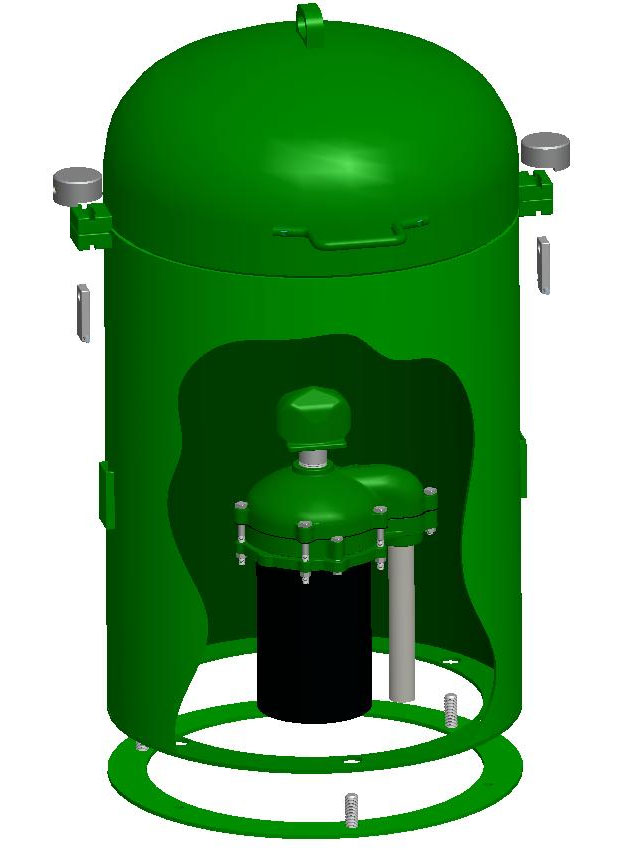

Protective Well Enclosure Click the image to view full size

The Monitor Protective Well Enclosure provides an additional level of wellhead security.

  • Request Information
  • For CAD drawing contact sales at 800-356-5130 or e-mail monitorsales@baker-mfg.com.


  • Features
  • Durable Steel Construction
  • Stainless Steel Lock Pins
  • Shielded Locks
  • Easy Open Lid
  • Lift Hook For Easy Removal
  • Quick Release Pins for Base Removal
  • Base Ring for Easy Cement Installation
  • Shielded Screened Vents for Proper Airflow
  • Powder Coat Painted Interior & Exterior

Pitless Booster Stations

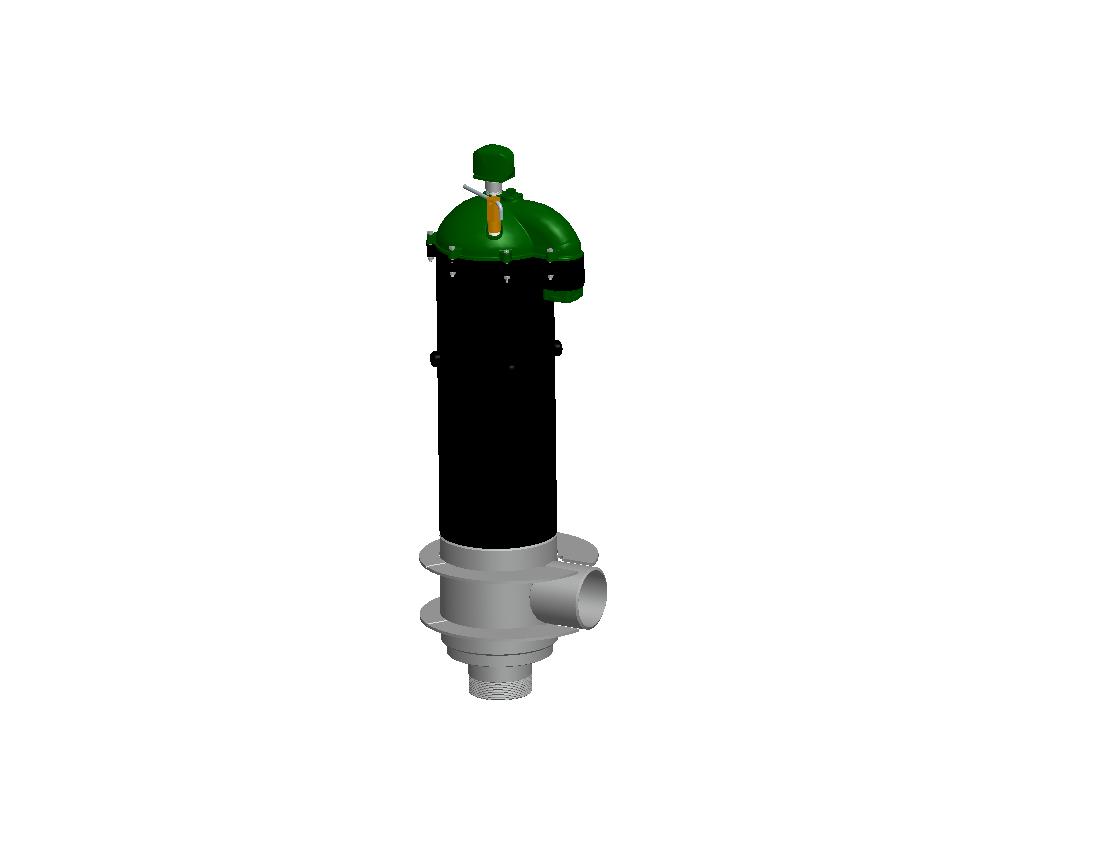

Water Booster Station Click the image to view full size

The Monitor Pitless Booster Station is a unique device designed for increasing waterline pressure or filling water towers.

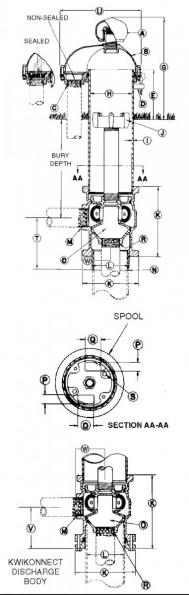

  • Specifications

6 Inch Industrial Pitless
A Screened Well Vent tap size: 1-1/2” NPT
B Seal Cap: The Watertight cap bolts to a compression seal ring securing around the
pitless case and comes with the screened well vent installed.

C Conduit Tapping size:
Watertight conduit seals for most common cable sizes are available for watertight cap.
1-1/2” NPT
D Depth Tester Tapping: 1/4” NPT
E Distance from ground level to top of Pitless Case: 12”
G Distance from ground level to top of
Screened Well Vent:
19-1/2”
H Pitless Case I.D. size: 7”
I Pitless Case wall thickness: .300”
J “Hold-Down” - “Lift-Out” Mechanism
Three set screws in a spider atop the “Hold-Down” - “Lift-Out” pipe brace against the interior of the pitless casing, locking the spool in place.
Hold-Down, Lift-Out pipe size (Schedule 80):
Designed “Lift-Out” Mechanism load:
2” NPT
15,000 lbs.
  DISCHARGE BODY - THREADED
K Discharge Body outside diameter: 9-11/16”
K Discharge Body length:
DISCHARGE BODY - KWIKONECT
11-1/4”
K Discharge Body outside diameter: 10”
K Discharge Body length: 12-9/32”
L Pitless Unit minimum inside diameter.: 6-3/8”
M Discharge Connection Tapping size: 3” NPT
N Pitless Unit to well casing connection I.D.: 6” Weld
O SPOOL ASSEMBLY
Spool Design Load:
15,000 lbs.
P MOTOR CABLE PASSAGES THROUGH SPOOL 13/16”
Q   1-3/4”
R Spool to Drop Pipe Connection: 3” NPT
S Pressure zone tapping: 3/8” NPT: (2) available
T Dimension from center of discharge outlet
to bottom of weld nipple:
9-3/8”
U Overall length of seal cap: 12-7/8”
V Dimension from center of discharge to
bottom of discharge body:
7-3/4”
W Dimension from center of well casing to
end of discharge outlet:
5-25/32”

Packaged Booster Stations - NSF 61 Certified

Monitor Booster Pump Station Click the images to view full size

The Monitor Booster Station is a complete packaged pump station including pitless boosters, pumps, motors, control panel, and isolation valves


  • Features

Monitor Booster Pump Stations utilize highly efficient submersible verticle turbine pumps, eliminating the "well house" and "well pit" providing significantly reduced installation costs, less environmental impact, and lowering the overall carbon footprint of the installation. Noise Complaints are virtually eliminated and maintenance can be performed in a safe environment.

  • New High Efficiency Spool Design (patent pending) - Reduces operating costs
  • ANSI/NSF-61 Certified Submersible Pump - Available for potable water applications
  • Available completely assembled, pre-packaged, and factory tested - to assure long term reliable operation
  • UL 508a approved control panel with PLC/VFD & custom Ladder Logic control software for better overall performance
  • No Pump House - lower installation and operating costs
  • Highly efficient, Submersible Verticle Turbine Pump Design - Reduced chance of damage due to weather or vandalism; and offers improved security
  • No requirement for shaft stabilization, alignment, or lubrication - Reduced maintenance/fewer moving parts/less inventory
  • Fewer overall materials - lower installation cost, less maintenance

Industrial Weld-On Adapters

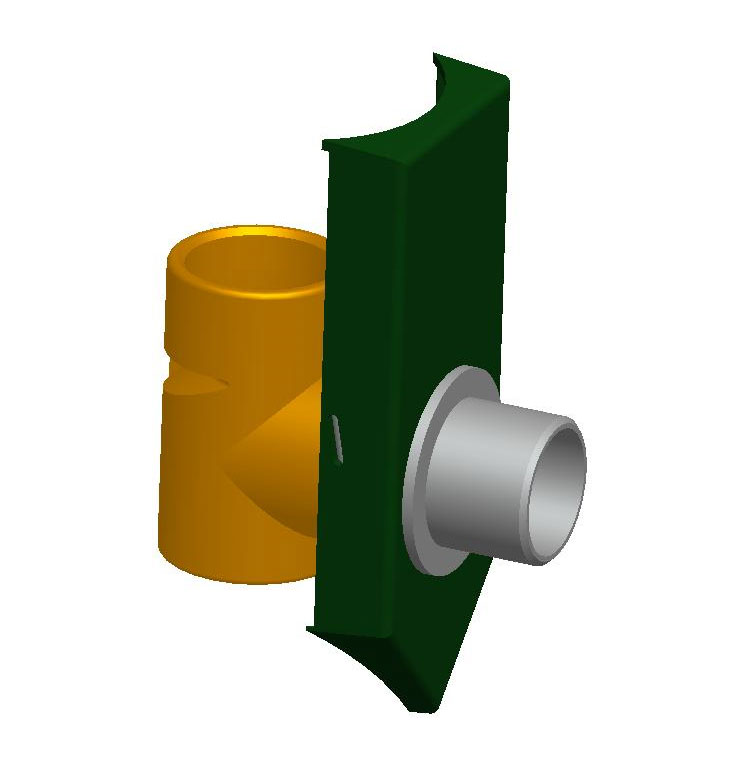

Industrial Weld-On Adapter Click the image to view full size

Monitor offers a high quality weld-on adapter for light duty pump sets.


  • Features
  • Durable fabricated steel housing - brass elbow, stainless steel discharge, large drain hole in the pull pipe port, 3” FIP pull pipe, 3” FIP drop pipe, 3” stainless steel MIP discharge and large o-ring seal.
  • Designed to be welded onto 8”, 10” and 12” I.D. steel casing.
  • Designed for shallow or deep settings and high working pressures up to 300 PSI.
  • Durable steel housing with tear drop design for EZ bottom welding.
  • Water contacts only 304 stainless steel and brass elbow for long term corrosion protection.
  • No obstruction in the casing I.D. when the brass elbow is removed.
  • Stainless steel 10o tapered slip fitting design on the elbow for easy installation and removal at time of servicing.
  • Large O-Ring neoprene seal.
  • Large drain hole in the 3” FIP pull pipe port.
  • Designed for 10,000 lbs. load.
  • Also available factory welded to casing.

Custom Pitless Units - NSF 61 Certified

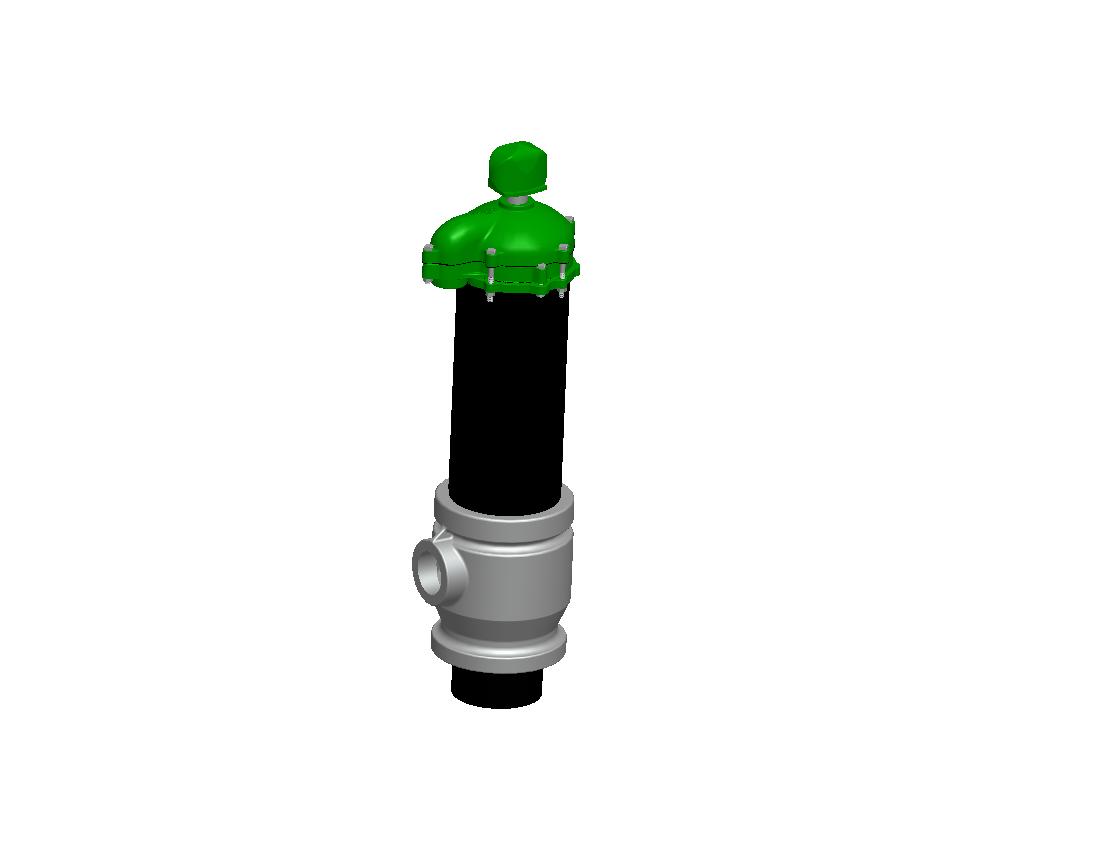

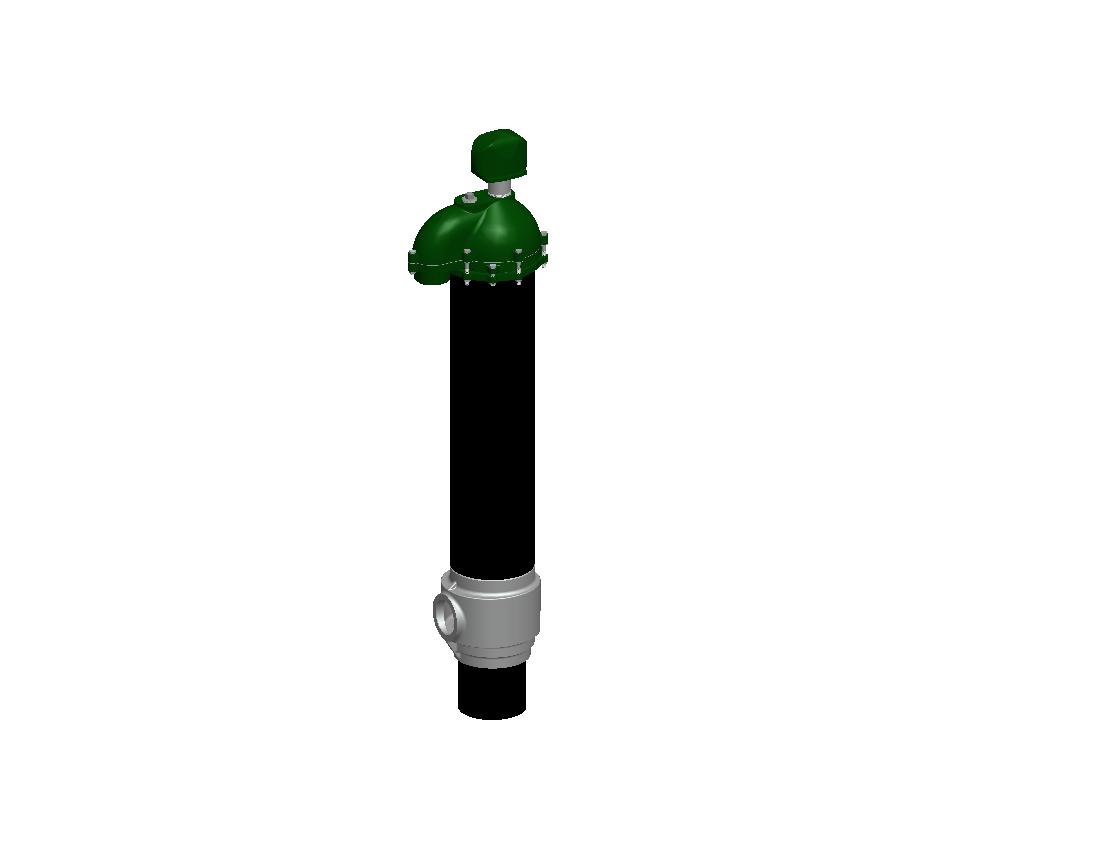

Custom Industrial Pitless Unit Click the images to view full size

Fabricated from the highest quality materials, the Monitor Custom Pitless Unit is a safe and sanitary method of completing a Municipal / Industrial water well.


  • Features
  • Specifications
  • Parts Breakdown
  • Component Materials
  • Ordering Instructions

* For All Sizes

CORROSION PROTECTION – all water passages are either hot-dipped lead free galvanized or constructed of corrosion resistant material

O-RING SEAL PROTECTION – Monitor seal protection prevents seal damage during installation and service.

FROST PROOF – No Heating is required. All water passages are below the frost line.

QUICK TO INSTALL – A quality pump installation can be made easily and economically without delay for masonry or building construction

EASY TO SERVICE – Well cap can be removed without disconnecting cables. O-ring seals on spool permit withdrawal of the entire inner assembly simply by lifting. Replacement is equally simple. Spool support eliminates vertical adjustment and any possibility of dropping the inner assembly into the wall.

RELIABLE SEALS – Neoprene O-Rings between accurately machined hot-dipped lead free galvanized surfaces on the spool and within the unit provide positive seals.

WATERTIGHT WELL CAP WITH SCREENED AIR VENT and LOCKING BOLTS – Designed to permit removal without disconnecting cables. Separate junction box is eliminated. Watertight cable and conduit sealing is optional

HOLD-DOWN – Supplied with each unit. Hold-down pipe also serves as lift-out pipe for installation and servicing.

SUPPORT RINGS – Prevent distortion of the Discharge Body due to vertical movement of Discharge Pipe

LOCKING BOLTS

LIFT-OUT BAIL

DEPTH TEST BLOCKS

PROTECTED SCREENED VENT

PROBE TUBE

FLOWING WELL UNITS (available for most well sizes)

WATER SAMPLING VALVE-FROST PROOF (optional)



All units are available in Stainless Steel upon request.

PART 1 GENERAL
1.01 SUMMARY

A. Section Includes:
Complete assembled Pitless Unit System including well cap, lift-out bail, hold down hooks, lift out pipe, discharge body with support ring, spool with or without check valves and pressure equalizing passages.

1.02 SUBMITTALS
A. All bidders shall submit as part of their bid:
1. The Manufacturer and Model of the Pitless Unit to be installed.
2. Detailed Specifications with Drawings of the System furnished by
the manufacturer.

PART 2 PRODUCTS
2.01 PITLESS UNIT
The Pitless Unit shall be equal to Baker Manufacturing Company, Monitor Division, Model_____________________________________­. The unit should be factory assembled, before shipping to the site. The pitless unit must conform to the Recommended Standards for Water Works, Great Lakes Upper Mississippi River Board of State Public Health & Environmental Managers, Health Education Services, Albany, NY., and/or Water Systems Council PAS-97 (04).

2.01.01 WELL CAP
The Watertight Cap shall be secured to the pitless casing with a compression gasket. The top of the cap can be removed without affecting the sealed conduit or wiring. The heavy duty watertight cap will have a separate protected downward facing screened well vent with pipe nipple. Construction of the cap and well vent will be of heavy duty gray cast iron and painted with a green enamel finish.

2.01.02 UPPER CASING
The Upper Casing is factory assembled to the discharge body, and the lift out and hold down mechanism are factory assembled to the spool. Upper casing thickness must conform to the Recommended Standards for Water Works, and be coated with a rust protective coating. The upper casing must provide a watertight connection from the discharge body to the well cap. The discharge port center line to be_______________ feet below grade, and the pitless upper casing to extend ________________feet above grade.

2.01.03 SPOOL
The spool shall include _______________NPT per ANSI B 1.20.1 male or female drop pipe connection and shall be constructed of lead-free galvanized heavy duty gray cast iron, ductile iron, or steel with a lead-free galvanized plating on the wetted surface of over .010 inches thick. The spool will have o-ring grooves machined into the spool retaining the o-rings when setting or pulling the system.

The positive pressure o-ring seals shall be constructed of neoprene or equivalent. Spool shall be designed to accommodate probe tubes or water samplers and NPT ports for discharge pressure taps. O-ring protection should be provided to prevent the seals from dragging on the upper casing when the pump is installed or removed.

2.01.04 DISCHARGE BODY
The Discharge Body shall be constructed of lead-free galvanized ductile iron or lead-free galvanized steel. O-ring seat to be designed to prevent crevice and galvanic corrosion, dissimilar metals should be avoided. Discharge body designed to be strong enough to prevent distortion due to vertical movement of discharge pipe thereby allowing spool to bind in the discharge body. Minimum I.D. of the discharge body to be equal to or greater than I.D. of the well casing for ease in well servicing.

2.01.05 HOLD-DOWN MECHANISM
The Pitless Unit spool should have a hold down mechanism, factory assembled to spool and capable of preventing rotation of the pitless spool relative to the discharge body, at full rated locked rotor torque of the submersible pump motor. The spool must also have a factory assembled lift out pipe and bail, or spider capable of ___________lbs. rated load, to allow lifting a water filled drop pipe and pump out of the well for service. Components to be constructed of ductile iron or steel with a corrosion resistant coating.

2.01.06 CHECK VALVES (Optional)
Optional Check Valves may or may not be provided in the removable spool of the pitless unit. These should be low pressure drop, self cleaning, swing type check valves, with elastomer seal at seat, and constructed of corrosion resistant materials.

Standard Pitless Units - NSF 61 Certified

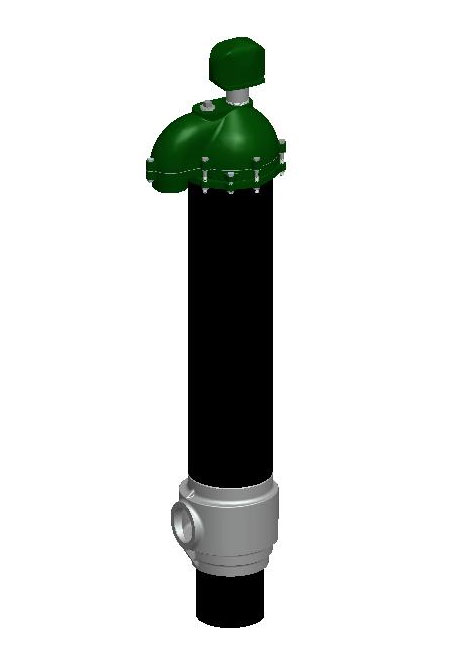

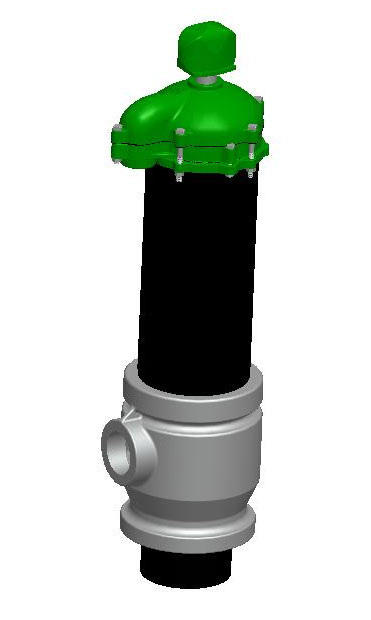

Monitor Standard Pitless Unit Click the images to view full size

The Monitor NSF 61 Certified Standard Pitless Unit is a specialized piece of equipment manufactured specifically for the purpose of completing a Municipal / Industrial water well.


  • Features
  • Specifications
  • Parts Breakdown
  • Component Materials
  • Ordering Instructions



Monitor Standard Pitless Units are shipped as complete factory pressure tested pitless unit including:

  • Watertight Premium Well Cap
  • Upper Bury Depth Casing Extension
  • Discharge Body, Spool
  • Discharge and Drop Connection
  • Lift-Out Bail
  • Hold-Down Assembly

Available options:

  • Epoxy coating
  • API drop pipe and discharge threads
  • Cap cable seals
  • Locking seal caps
  • Flowing well spools
  • Flanged upper casing
  • Water sampler valves
  • Wire seals
  • Probe tubes
  • Additional conduit entrance connections for signal wires.

Monitor units conform to the Recommended Standards for Water Works, Great Lakes Upper Mississippi River Board of State Public Health & Environmental Managers, Water Systems Council and PAS-97 (04) Standards.



PART 1 GENERAL
1.01 SUMMARY

A. Section Includes:
Complete assembled Pitless Unit System including well cap, lift-out bail, hold down hooks, lift out pipe, discharge body with support ring, spool with or without check valves and pressure equalizing passages.

1.02 SUBMITTALS
A. All bidders shall submit as part of their bid:
1. The Manufacturer and Model of the Pitless Unit to be installed.
2. Detailed Specifications with Drawings of the System furnished by
the manufacturer.

PART 2 PRODUCTS
2.01 PITLESS UNIT
The Pitless Unit shall be equal to Baker Manufacturing Company, Monitor Division, Model_____________________________________­. The unit should be factory assembled, before shipping to the site. The pitless unit must conform to the Recommended Standards for Water Works, Great Lakes Upper Mississippi River Board of State Public Health & Environmental Managers, Health Education Services, Albany, NY., and/or Water Systems Council PAS-97 (04).

2.01.01 WELL CAP
The Watertight Cap shall be secured to the pitless casing with a compression gasket. The top of the cap can be removed without affecting the sealed conduit or wiring. The heavy duty watertight cap will have a separate protected downward facing stainless steel screened well vent with pipe nipple. Construction of the cap and well vent will be of heavy duty gray cast iron and painted with a green enamel finish.

2.01.02 UPPER CASING
The Upper Casing is factory assembled to the discharge body, and the lift out and hold down mechanism are factory assembled to the spool. Upper casing thickness must conform to the Recommended Standards for Water Works, and be coated with a rust protective coating. The upper casing must provide a watertight connection from the discharge body to the well cap. The discharge port center line to be_______________ feet below grade, and the pitless upper casing to extend ________________feet above grade.

2.01.03 SPOOL
The spool shall include _______________NPT per ANSI B 1.20.1 male or female drop pipe connection and shall be constructed of lead-free galvanized heavy duty gray cast iron, ductile iron, or steel with a lead-free galvanized plating on the wetted surface of over .010 inches thick. The spool will have o-ring grooves machined into the spool retaining the o-rings when setting or pulling the system.

The positive pressure o-ring seals shall be constructed of neoprene or equivalent. Spool shall be designed to accommodate probe tubes or water samplers and NPT ports for discharge pressure taps. O-ring protection should be provided to prevent the seals from dragging on the upper casing when the pump is installed or removed.

2.01.04 DISCHARGE BODY
The Discharge Body shall be constructed of lead-free galvanized ductile iron or lead-free galvanized steel. O-ring seat to be designed to prevent crevice and galvanic corrosion, dissimilar metals should be avoided. Discharge body designed to be strong enough to prevent distortion due to vertical movement of discharge pipe thereby allowing spool to bind in the discharge body. Minimum I.D. of the discharge body to be equal to or greater than I.D. of the well casing for ease in well servicing.

2.01.05 HOLD-DOWN MECHANISM
The Pitless Unit spool should have a hold down mechanism, factory assembled to spool and capable of preventing rotation of the pitless spool relative to the discharge body, at full rated locked rotor torque of the submersible pump motor. The spool must also have a factory assembled lift out pipe and bail, or spider capable of ___________lbs. rated load, to allow lifting a water filled drop pipe and pump out of the well for service. Components to be constructed of ductile iron or steel with a corrosion resistant coating.

2.01.06 CHECK VALVES (Optional)
Optional Check Valves may or may not be provided in the removable spool of the pitless unit. These should be low pressure drop, self cleaning, swing type check valves, with elastomer seal at seat, and constructed of corrosion resistant materials.
