6" Pitless Booster

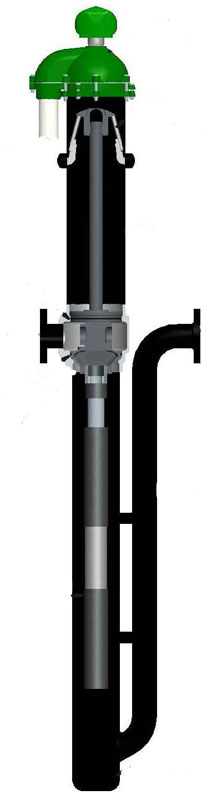

6 in pitless booster station Click the image to view full size

  • Features
  • Specifications
  • Parts Breakdown
  • Ordering Instructions

EASY ACCESS TO SERVICE... Well cap can be removed without disconnecting cables. O-ring seals on spool permit withdrawal of the entire inner assembly simply by lifting. Replacement is equally simple. Spool support eliminates vertical adjustment allowing service above ground.

CORROSION PROTECTION... Spool and Discharge Body are either lead free hot-dipped galvanized or constructed of corrosion resistant material for longer life, less service.

RELIABLE SEAL... Neoprene O-rings between accurately machined lead free hot-dipped galvanized surfaces on the spool and within the unit provide positive seals to ensure maintenance free performance.

O-RING SEAL PROTECTION... Monitor seal protection prevents seal damage during installation and service eliminating potential service costs.

QUICK TO INSTALL... A quality booster pump installation can be made easily and economically without delay for masonry or building construction creating a sound cost savings solution.

ALTERNATIVE SPOOLS (6x7 and 8x10 only)... Spools are available plain or with silent check valves. The Monitor silent check valve has its operating parts automatically exposed when the spool is withdrawn. Spools are supplied with tappings for pressure controls.

WATERTIGHT WELL CAP... Designed to permit removal without disconnecting cables. Watertight cable and conduit sealing is available for additional protection.

HOLD DOWN... Supplied with each unit. Hold-down pipe also serves as lift-out pipe for installation and allowing speedy service.

FROST PROOF... No heating is required. All water passages are below the frost line.

ALTERNATIVE DISCHARGE & INLET CONNECTIONS... Are available to meet your requirements.

6" Pitless Booster
A Seal Cap: The Watertight cap bolts to a compression seal ring securing around the
pitless case and comes with the screened well vent installed.

B Conduit Tapping size:
Watertight conduit seals for most common cable sizes are available for watertight cap.
1-1/2” NPT
C Distance from ground level to top of Pitless Case 12"
D Distance from ground level to top of Well Cap 14-3/4"
E Pitless Case size 7"
F Pitless Case wall thickness 300"
G "Hold Down-Lift Out Assembly": positions & clamps spool to Discharge Body to prevent rotation during pump start up Hold-Down, Lift-Out Pipe size 1-1/4"
  Designed "Lift-Out" assebmly load 4700 lbs
H Discharge body size 9-11/16" O.D. x 11-1/14" long
I Pitless Unit minimum I.D. 6-3/8"
  DISCHARGE CONNECTIONS AND SIZES
J For Flanged (ASA Std. 150 lbs.): 3” I.D.
K For Threaded Nipple (NPT): 3” I.D.
L For Butt Weld (IPS): 3" I.D.
M For Transition Sleeve (IPS): 3" I.D.
N Dimension from center of Booster Unit to end of discharge outlet.
  With J Flanged Discharge 10-5/8"
  With K Threded Discharge 5-25/32"
  With L Welded Discharge 7-7/8"
  With M Transition Disharge 18"
  INLET CONNECTIONS AND SIZES
O For Flanged (ASA Std. 150 lbs): 3" I.D.
P For Threaded Nipple (NPT): 3" I.D.
Q  For Butt Weld (IPS): 3" I.D.
R For Transition Sleeve (IPS): 3” I.D.
S Dimension from center Of Booster Unit to end of Inlet Connection.
  With O Flanged Inlet: 15-5/8"
  With P Threaded Inlet: 15-7/8"
  With Q Welded Inlet: 12-7/8"
  With R Transition Inlet: 25"
T Discharge Body to tank pipe connection: 6" NPT
U SPOOL ASSEMBLY
  Spool design load: 64,000 lbs.
  -WITHOUT CHECK VALVES-
  Area of water passages: 10 sq. in.
  Percent area of water passages to area of Drop Pipe:

135%

  -WITH TWO CHECK VALVES-
  Area of valve passages: 6.28 sq. in.
  Precent area of valve passages to area of Drop Pipe: 89%
V Motor Cable tapings through spool (w/cable connectors): (4) 3/8" NPT
  Maximum allowable (4) 3/8" NPT
W Tapping into Pressure Zone: 3/8" NPT
  (Furnished with square head plug)
X Tapping into Suction Zone: 1"
  (Furnished with square head plug)
Y Spool to drop pipe nipple connection: 3" NPT
Z Tank Pipe Size: 6" I.D.



Specifications are Subject to Change Without Notice.


COMPONENT MATERIALS
Cap & Conduit Box - Cast iron, green enamel finish
Combination Hold-Down & Lift Out Mechanism - lead-free galvanized
Hold-down pipe - steel, corrosion resistant coating
Pitless Case - steel, black corrosion resistant coating
Spool - cast iron, lead-free galvanized
Disharge Body - Ductile or cast iron, lead free galvanized

Note:- Any combination between Drop Pipe and Discharge Outles size is possible, if required
Note: - Maximum rated discharge pressure is 300 PSI

6" Pitless Booster Parts Breakdown

Key No.
Quanity
Description
Order No.

1
1
Pipe Plug, 1 1/2" NPT
UG54
2
6
Machine Bolt 3/8-16NCx3 1/2"L
PS94S
3
1
Machine Bolt 3/8-16NCx2 1/2"L
PS93S
4
1
Seal Cap & Plug Assy
PS217
5
1
Gasket
PS197
6
2
Machine bolt, 5/16-18NCx2"L
PS132S
7
1
Retainer Ring
PS377
8
7
Hex nut 3/8-16NC
UB17S
8A
2
Hex nut 5/16-18NC
PC434S
9
1
Seal Ring
PS167
10
1
Depression ring
PS187
11
2
Hex Nut 5/8-11NC
N75
12
2
Washer
WA75
13
2
Hold-down Hook
UJ7BH
14
1
Lift-Out Pipe & Bail Assembly  NOTE:  Must be ordered by description and unit Serial Number

15
1
Reducer Bushing 2x1 1/4
PC330
17
4
Cable Connectors     Note:  Must br ordered by description & unit Serial Number

18
2
Pipe Plug 3/8-18 NPT
UN122
19
1
Spool (7E0PS3F)
UC271
--
1
Spool Assy w/check valves inc. Key Nos. 18-33 except 25, 26, 35 (7E2PS3F)
UC393
20
2
Hinge Pin
UC299
21 2 Hinge Pin Gasket UC127A
22 4 Rocker Arm UC301
23 2 Valve Spring UC302
24 2 Valve Spring Center Support UC300
25 4 Coupling 3/8-18NPT PS182
26 4 Nipple 3/8-18NPT PS181
27 2 Valve Body UC292
28 2 Rubber Check Valve Facing UC295
29 2 Brass Washer UG217
30 2 Brass Nut, 3/8-13NC PS159
31 2 Check Valve Seat UC293
32 2 Check Valve Assy Includes UC296
    Key Nos. 27 thru 30
33 2 O-Ring UC15
34 1 Pipe Nipple 3" NPT x 6" L UK351
35 1 Spool UC287
-- 1 Spool Assy less check valves Includes Key Nos. 18, 25, 26, 33 & 35 UC392
36 1 Casing ------
37 1 Discharge Body FIP discharge outlet UC291
38
1
Tank & Inlet Pipe Assy Note:  Must be ordered by description & unit Serial Number
------


    spacer
6" Pitless Booster
DESCRIPTION - ORDERING NUMBERS
A
6
Bury Depth in Feet

PS
Pitless Booster for Submersible Pump
B
6
spacerReservoir Tank Size - Ins.
C
7
spacerUpper Case Size - Ins.
D
T
spacerThreaded Joint
E
B
spacerBlack Upper Case
F
W
spacerWatertight Cap
G
X
spacerMotor Cable Passages - Sealed
  2  Check Valves: 0 or 2
H
3
 Size of Drop Pipe in Ins. (3" std)
I
  spacerThreaded NPT Std. spacer
spacerConnection
Discharge
Connections
(Select One)
F
spacerFlange, ASA 150#
  spacerWelded
  spacerMech. Joint w/transition
spacersleeve
J
3
spacerSize of Discharge Pipe - Ins. (3" std)
K
6
spacerLength of Reservoir Tank - Feet
L 3  Inlet Pipe Size - Ins. (3" std)
M    Welded
 F  Flange, ASA 150#


 Threaded NPT

   Mech. Joint w/ trans. sleeve
N
S

Elec. Cable Seal(s)

O.D. 3 Wire_______     O.D. Ground Wire_______




Special Provision (X)







UNITS AVAILABLE BY QUOTATION ONLY
5” THROUGH 36” TANK SIZES

EXPLANATION OF PITLESS BOOSTER UNIT
ORDERING NUMBERS

The diagram illustrates the meaning of the various letters and numerals used in Monitor Pitless Booster Unit ordering numbers. A typical order number and the pitless unit it stands for are shown.

Typical Order Number
6PS67TBWX23F363FS

6

A. The first numeral in the order number indicates the bury depth, in feet, of the unit. Bury depth on all units is measured from the center of the discharge line to ground level. The top of the pitless case extends 12” above ground level as is required by many codes.

PS
These letters indicate the type of pump the pitless unit is designed for. The unit shown is a PS for submersible pumps.
6
B. This numeral indicates the reservoir tank size. 6 is for a 6" I.D. diameter tank.
7
C. This numeral indicates the upper pitless case size. 7 is for a 7" diameter case.
T
D. Indicates the attachment to the reservoir tank is threaded.
B
E. The presence of the letter "B" in the order number indicates the upper pitless case is black pipe.
W
F. Indicates the unit has a watertight cap.
X
G. Indicates spool passages are closed.
2
This numeral indicates the type of spool which the pitless unith has.  In this case it is a spool having two silent check valves.  Avaialable with 6 and 8 inch tanks only.
3
H. Indicates the size of drop pipe in inches.
F
I. Indicates the discharge connection is flanged.
3
J. Indicates the size of discharge pipe in inches.
6
K. Indicates the length of the reservoir tank in feet, and is measured from the center of the disharge line to the bottom of the unit.
3 L. Indicates the inlet connection diamter in inches.
F M. Indicates the inlet pipe connection is flanged.
S N. Sealed conduit connection (Optional)
