12" Pitless Booster

12 inch pitless booster station Click the image to view full size

  • Features
  • Specifications
  • Parts Breakdown
  • Ordering Instructions

EASY ACCESS TO SERVICE... Well cap can be removed without disconnecting cables. O-ring seals on spool permit withdrawal of the entire inner assembly simply by lifting. Replacement is equally simple. Spool support eliminates vertical adjustment allowing service above ground.

CORROSION PROTECTION... Spool and Discharge Body are either lead free hot-dipped galvanized or constructed of corrosion resistant material for longer life, less service.

RELIABLE SEAL... Neoprene O-rings between accurately machined lead free hot-dipped galvanized surfaces on the spool and within the unit provide positive seals to ensure maintenance free performance.

O-RING SEAL PROTECTION... Monitor seal protection prevents seal damage during installation and service eliminating potential service costs.

QUICK TO INSTALL... A quality booster pump installation can be made easily and economically without delay for masonry or building construction creating a sound cost savings solution.

ALTERNATIVE SPOOLS (6x7 and 8x10 only)... Spools are available plain or with silent check valves. The Monitor silent check valve has its operating parts automatically exposed when the spool is withdrawn. Spools are supplied with tappings for pressure controls.

WATERTIGHT WELL CAP... Designed to permit removal without disconnecting cables. Watertight cable and conduit sealing is available for additional protection.

HOLD DOWN... Supplied with each unit. Hold-down pipe also serves as lift-out pipe for installation and allowing speedy service.

FROST PROOF... No heating is required. All water passages are below the frost line.

ALTERNATIVE DISCHARGE & INLET CONNECTIONS... Are available to meet your requirements.

12 Inch Pitless Booster
A Seal Cap: The watertight cap bolts on top of the upper casing forming a watertight connection with a gasket.
B Conduit Tapping Sizes: 2" & 1" NPT without sealed conduit connection: 2" & 1", 2", 3" or 4" NPT with sealed conduit connection. Watertight conduit seals for most common cable sizes are available.
C Distance from ground level to top of Pitless Case: 12"
D Distance from gound level to top of Seal Cap: 22 1/16"
E Pitless Case size: 13 3/8" I.D. 14" O.D.
F Hold Down-Lift Out Assembly: Positions and clamps spool to discharge body to prevent rotation during pump start up.  Hold Down-Lift Out pipe size 4" IPS.  Designed Lift-Out assembly load: 60,000 lbs. (2) Hold-Down hooks supplied.
G Pitless Unit minimum: I.D. 12"
H Motor cable tappings through spool: (4) 1/2" NPT (with cable connectors)
I

Tapping into Pressure Zone: 3/8" NPT (furnished with square head plug)


K Spool to Drop Pipe connection sizes: 4" NPT 5" NPT 6" NPT
L Dimension from center of discharge outlet
to bottom of spool:
12 7/8" 12" 11 3/4"
  DISCHARGE CONNECTIONS AND SIZES:
M For Flanged (ASA Std. 150 lbs) 4" I.D. 5" I.D. 6" I.D.
N For Threaded Nipple (NPT) 4" I.D. 5" I.D. 6" I.D.
O For Butt Weld (IPS) 4" I.D. 5" I.D. 6" I.D.
P For Transition Sleeve (IPS) 4" I.D. 5" I.D. 6" I.D.
Q Dimension from center of Booster Unit to the end of the discharge outlet.
  With M Flanged Discharge: 21 1/2" 22" 16 7/16"
  With N Threaded Discharge: 21 7/16" 21 7/16" 16 15/16"
  With O Welded Discharge 18 1/2" 18 1/2" 12 15/16"
  With P Transition Discharge: 30" Not Available 25"
  INLET CONNECTIONS & SIZES
R For Flanged (ASA Std. 150 lbs) 4" I.D. 5" I.D. 6" I.D.
S For Threaded Nipple (NPT) 4" I.D. 5" I.D. 6" I.D.
T For Butt Weld (IPS) 4" I.D. 5" I.D. 6" I.D.
U For Transition Sleeve (IPS) 4" I.D. 5" I.D. 6" I.D.
V Dimension from center of Booster Unit to end of Inlet Connection.
   With R Flanged Inlet  30 1/8" 30 5/8"  25 1/16"
   With S Threaed Inlet  30 1/8" 30 1/8"  25 9/16"
   With T Welded Inlet  27 1/16" 27 1/16"  21 9/16"
   With U Transition Inlet  39" Not Available  34"
W SPOOL ASSEMBLY
  Area of water passage (s) 25.12 sq in. 25.12 sq. in. 25.12 sq. in.
  Percent area of water passages to area drop pipe 100% 125% 87%
X Tank Pipe Size 12" I.D. 12" I.D. 12" I.D.




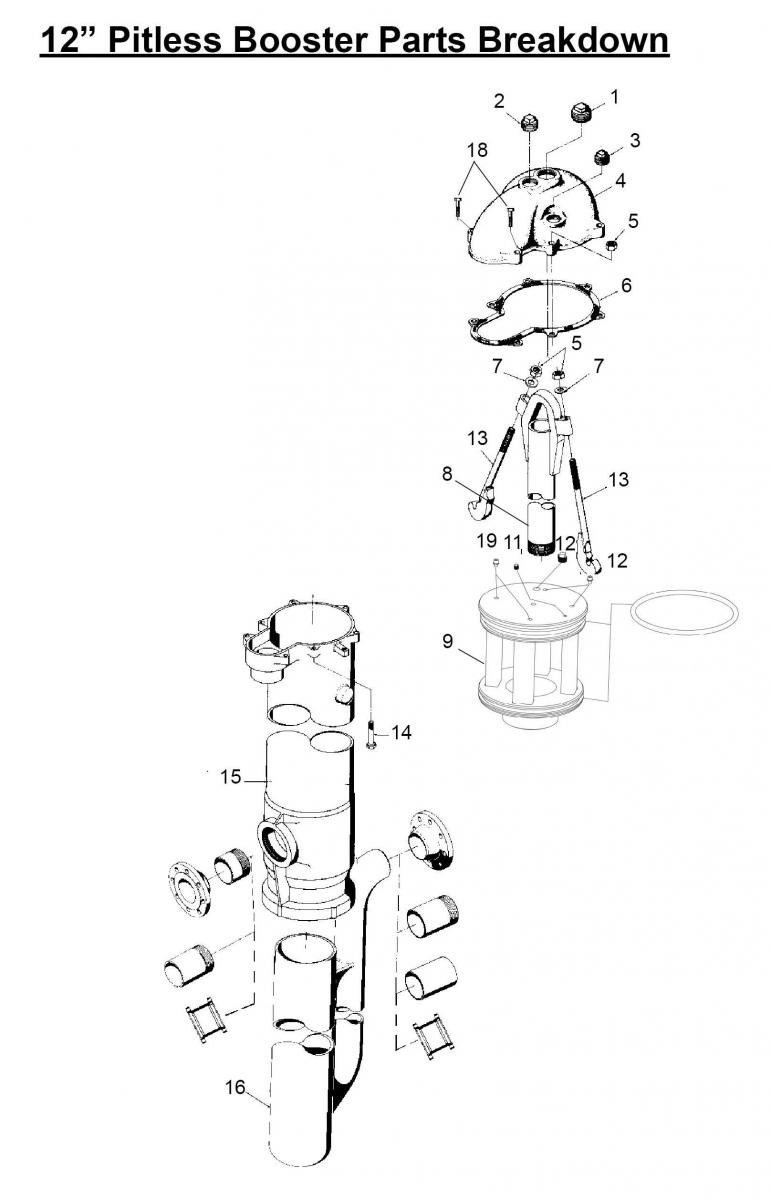

5" Pitless Booster Parts Breakdown

Key No.
Quanity
Description
Order No.

1
1
Pipe Plug 2 1/2"
UK50
2
1
Pipe Plug 2" NPT
UJ50
3
1
Plug Plug 1 1/2" NPT
UG54
4
1
Seal Cap (UK850)
UK12
5
9
Hex Nut 5/8"-11NC
N75
6
1
Gasket
UK72
7 2 Washer WA75
Lift Out Bail & Lift Out Pipe Assy     Order by Bury Depth
-----
9
1
Spool (14E0PSF)
UK6S4EF
10
2
O-Ring
UK15
11
1
Pipe Plug 3/8 - 18 NPT
UN122
12
4
Cable Connectors    Note:  Must be ordered by description & unit serial no.
-----
13
2
Hold Down Hook
UJ7BH
14
5
Hex Hd. Cap Screw 5/8 - 11HC x 5"L
UN73
15
1
Discharge Body & Upper Casing Assy.    order by bury depth
------
16
1
Inlet Pipe and tank assy   Note:  Must be ordered by description & unit serial no.
------
18
2
Lock Bolt - 5/8 x 4 3/4"L
LK4
19
1
Pipe Plug 1" NPT
UN120


    spacer
12" Pitless booster
DESCRIPTION - ORDERING NUMBERS
A
6
Bury Depth in Feet

PS
Pitless Booster for Submersible Pump
B
12
spacerReservoir Tank Size - Ins.
C
14
spacerUpper Case Size - Ins.
D
W
 Welded
E
B
spacerBlack Upper Case
F
W
spacerWatertight Cap
G
X
spacerMotor Cable Passages - Sealed
  0

 Check Valves: 0

H
6
 Size of Drop Pipe in Ins. (4", 5" or 6")
I
  spacerThreaded NPT Std.spacerConnection
Discharge
Connections
(Select One)
F
spacerFlange, ASA 150#
  spacerWelded
  spacerMech. Joint w/transitionspacersleeve
J
6
spacerSize of Discharge Pipe - Ins.
K
6
spacerLength of Reservoir Tank - Feet
L 6  Inlet Pipe Size - Ins.
M    Welded
 F  Flange, ASA 150#


 Threaded NPT

   Mech. Joint w/ trans. sleeve
  E Standard Unit
N
S

Elec. Cable Seal(s)

O.D. 3 Wire_______     O.D. Ground Wire_______




Special Provision (X)







UNITS AVAILABLE BY QUOTATION ONLY
5” THROUGH 36” TANK SIZES

EXPLANATION OF PITLESS BOOSTER UNIT
ORDERING NUMBERS

The diagram illustrates the meaning of the various letters and numerals used in Monitor Pitless Booster Unit ordering numbers. A typical order number and the pitless unit it stands for are shown.

Typical Order Number
6PS1214WBWX06F666FES

6

A. The first numeral in the order number indicates the bury depth, in feet, of the unit. Bury depth on all units is measured from the center of the discharge line to ground level. The top of the pitless case extends 12” above ground level as is required by many codes.

PS
These letters indicate the type of pump the pitless unit is designed for. The unit shown is a PS for submersible pumps.
12
B. This numeral indicates the reservoir tank size. 12 is for a 12" I.D. diameter tank.
14
C. This numeral indicates the upper pitless case size. 14 is for a 14" diameter case.
W
D. Indicates the attachment to the reservoir tank is a welded joint on 8" - 30".
B
E. Indicates the upper pitless case is black pipe.
W
F. Indicates the unit has a watertight cap.
X
G. Indicates spool passages are closed.
0
This numeral indicates the type of spool which the pitless unit has.  In this case it is a spool that has no check valves.
6
H. Indicates the size of drop pipe in inches.
F
I. Indicates the discharge connection is Flanged.
6
J. Indicates the size of discharge pipe in inches.
6
K. Indicates the length of the reservoir tank in feet, and is measured from the center of the disharge line to the bottom of the unit.
6 L. Indicates the inlet connection diamter in inches.
F M. Indicates the inlet pipe connection is flanged.
E Indicates this is a standard unit.
S N. Sealed conduit connection (Optional)
