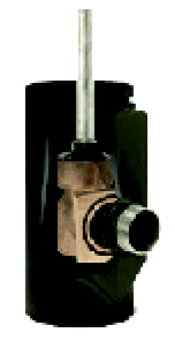

WELD ON PITLESS ADAPTER
FOR 8”, 10” & 12” WELLS

FEATURES

Durable fabricated steel housing - brass elbow, stainless steel discharge, large drain hole in the pull pipe port, 3” FIP pull pipe, 3” FIP drop pipe, 3” stainless steel MIP discharge and large o-ring seal.

• Designed to be welded onto 8”, 10” and 12” I.D. steel casing.
• Designed for shallow or deep settings and high working pressures up to 300 PSI.
• Durable steel housing with tear drop design for EZ bottom welding.
• Water contacts only 304 stainless steel and brass elbow for long term corrosion protection.
• No obstruction in the casing I.D. when the brass elbow is removed.
• Stainless steel 10o tapered slip fitting design on the elbow for easy installation and removal at time of servicing.
• Large O-Ring neoprene seal.
• Large drain hole in the 3” FIP pull pipe port.
• Designed for 10,000 lbs. load.
• Also available factory welded to casing.
