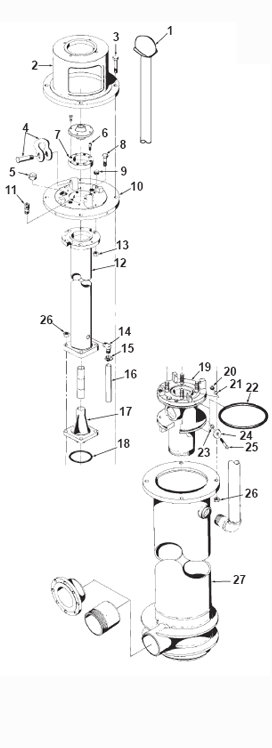

20" TURBINE PITLESS PARTS BREAKDOWN
Ordering Information
Turbine Specifications
Parts Breakdown


ANY ORDER FOR REPAIR
PARTS MUST BE
ACCOMPANIED BY
THE PITLESS UNIT
SERIAL NUMBER AND
ORDER NUMBER
Key No. Qty Description Ord. No.
1 1 Screen Well Vent 2 1/2” NPT PS155
2 1 Motor Support Stand UQ400
3 4 Hex Head Cap Screw 1”-8NCX4-1/2” L. UL173
4 2 Screw Pin Anchor Shackle-1 3/8” Bow Size UL175
5 1 Pipe Plug 1 1/2x11 1/2” NPT UG54
6 4 Hex Socket Cap Screw-1/2-13NCx 1 1/2” L. UK468
7 1 Upper Bearing Seal Housing (Machined to customer specifications) UK564
8 6 Hex Head Cap Screw-7/8-9NCx3 1/2” L. UK471
9 1 Pipe Plug, 1”-11 1/2”NPT SW33
10 1 Motor Support Plate UQ550
11 1 Air Test Adapter UK180
12 1 Lift-Out Pipe Assembly UN563
13 10 Hex Nut, 7/8-11NC UK188
14 1 Elbow, 3/4” IPx 3/4”-Plastic UM149
15 1 Pipe Clamp - 3/4” UM147
16 1 Drain Pipe UL88
17 1 Bearing Seal Housing UN183
18 1 Static Seal Ring UN170
19 1 Spool Assembly (Order by description & Unit Serial No.) ------
20 4 Hex Nut, 3/8-16NC UB17
21 4 Lockwasher TX31
22 2 Static Seal Rings for spool UQ15A
23 4 Washer ZA81
24 4 Washer UL95
25 4 Machine Screw, 3/8-16NCx2 1/4” L UM222
26 4 Hex Nut, 3/4-10NC UM140
27 1 Discharge Body & Upper Case Assembly (Order by description & Unit Serial No.) ------
