20" TURBINE PITLESS UNIT

Ordering Information

Turbine Specifications

Parts Breakdown

DESCRIPTION - ORDERING NUMBERS

Bury Depth in Feet

Pitless Unit for Turbine Pump

Well Size - Ins.

Upper Case Size - Ins.

Attachment to Well Casing-Welded

Black Upper Case

Pressure Equalizing Spool Passages

Standard Spool

Size of Column Pipe in Ins.(6”,8” or 10”)

H	F	Welded	Discharge Connections (Select One)
		Flange, ASA 150#
		Threaded NPT
		Mech. Joint

Accessory - Transition Sleeve

Discharge Size-Ins. (6”,8” or 10”)

Waterlube

Special Provision (X)

UNITS AVAILABLE BY QUOTATION ONLY
10” THROUGH 20” WELL SIZES

EXPLANATION OF PITLESS UNIT
ORDERING NUMBERS

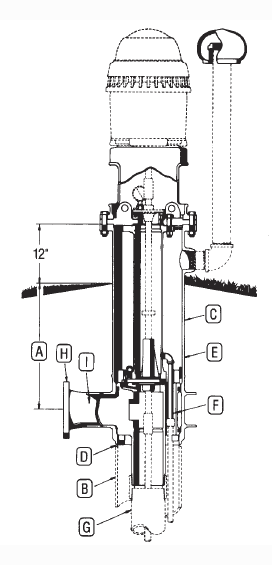

The diagram illustrates the meaning of the various letters and numerals used in Monitor Turbine Pitless Unit ordering numbers. A typical order number and the pitless unit it stands for are shown.

Typical Order Number
3PT2022WBE06F6W

3	A. The first numeral in the order number indicates the bury depth, in feet, of the unit. Bury depth on all units is measured from the center of the discharge line to ground level. The top of the pitless case extends 12” above ground level as is required by many codes.
PT	The type of pump the pitless unit is designed for. The unit shown is a PT for Line Shaft Turbine Pumps.
20	B. The well casing size is for 20 ” wells.
22	C. The upper pitless case size is 22 ”.
W	D. The attachment to the well casing is a welded joint.
B	E. The upper pitless case is black pipe.
E	F. The spool has pressure equalizing passages.
0	The type of spool has no silent check valves.
6	G. The size of column pipe in inches.
F	H. The discharge connection is flanged.
6	I. The size of discharge line in inches.
W	The type of Line Shaft Turbine the unit is designed for, “W” water-lubricated.
