5" PITLESS BOOSTER SPECIFICATIONS

Ordering Information

Booster Specifications

Parts Breakdown

COMPONENT MATERIALS

Cap & Conduit Box - Cast iron,Green enamel finish.
Combination Hold-Down & Lift-Out Mechanism -
Hold-Down Pipe - Steel, corrosion resistant coating.
Pitless Case - Steel, black corrosion resistant coating.
Spool - Cast iron, lead free galvanized.
Discharge Body - Cast Iron, lead free galvanized.
Conduit Seal & O-Rings - Neoprene.
Tank & Inlet Pipes - Steel, black corrosion resistant coating.
NOTE: Inlet pipe & tank pipe tested to 200 P.S.I., spool discharge pressure tested to 300 P.S.I.

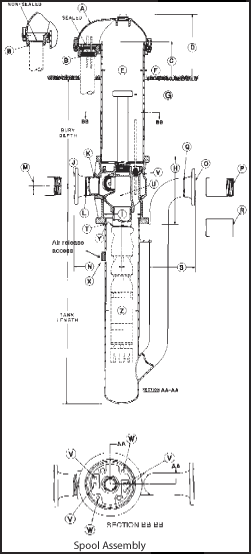

A	Seal Cap: The watertight cap bolts to a compression seal ring securing around the pitless casing.
B	Conduit Tapping Size (Standard): Watertight conduit seals for most common cable sizes are available.	1-1/2” NPT
C	Distance from ground level to top of Pitless Case	12 in.
D	Distance from ground level to top of Well Cap	14-3/4 in.
E	Pitless Case Size	6 in.
F	Pitless Case wall thickness	.280 in.
G	“Hold Down-Lift Out Assembly”: positions & clamps spool to Discharge Body to prevent rotation during pump start up Hold-Down, Lift-Out Pipe size:	1-1/4”
	Designed “Lift-Out” assembly load:	4700 lbs.
H	Discharge Body Size:	8-3/4 in. O.D.x 8-15/16 in. long
I	Pitless Unit minimum I.D.:	6 in.
	DISCHARGE CONNECTIONS AND SIZES
J	For Flanged (ASA Std. 150 lbs.):	2 in. I.D.
K	For Threaded Nipple (NPT):	2 in. I.D.
L	For Butt Weld (IPS):	2 in. I.D.
M	For Transition Sleeve (IPS):	2 in. I.D.
N	Dimension from center of Booster Unit to end of discharge outlet.
	With J Flanged Discharge:	9-1/4 in.
	With K Threaded Discharge:	4-7/16 in.
	With L Welded Discharge:	6-3/4 in.
	With M Transition Discharge:	15-3/4 in.
	INLET CONNECTIONS AND SIZES
O	For Flanged (ASA Std. 150 lbs.):	2 in. I.D.
P	For Threaded Nipple (NPT):	2 in. I.D.
Q	For Butt Weld (IPS):	2 in. I.D.
R	For Transition Sleeve (IPS):	2 in. I.D.
S	Dimension from center of Booster Unit to end of Inlet Connection.
	With O Flanged Inlet:	10-21/32 in.
	With P Threaded Inlet:	11-5/32 in.
	With Q Welded Inlet:	8-5/32 in.
	With R Transition Inlet:	20-5/32 in.
T	Discharge Body to tank pipe connection:	5 in. NPT
U	SPOOL ASSEMBLY
	Spool design load:	4200 lbs.
V	Motor Cable tappings through spool (w/cable connectors):	(4) 3/8 in. NPT
	Maximum allowable	(4) 3/8 in. NPT
W	Tapping into Pressure Zone: (Furnished with square head plug)	3/8 in. NPT
X	Tapping into Suction Zone (Furnished with square head plug)	1”
Y	Spool to drop pipe nipple connection:	2 in. NPT
Z	Tank Pipe Size:	5 in. I.D.

Specifications are Subject to Change Without Notice.
