5" PITLESS BOOSTER UNIT

Ordering Information

Booster Specifications

Parts Breakdown

DESCRIPTION - ORDERING NUMBERS

Bury Depth in Feet

Pitless Unit for Submersible Pump

Reservoir Tank Size - Ins.

Upper Case Size - Ins.

Threaded Joint

Black Upper Case

Watertight Cap

Motor Cable Passages - Sealed

Check Valves

Size of Drop Pipe in Ins.(2” std)

I	F	Welded	Discharge Connections (Select One)
		Flange, ASA 150#
		Threaded NPT
		Mech. Joint w/transition sleeve

Size of Discharge Pipe - Ins.(2” std)

Length of Reservoir Tank - Feet

Inlet Pipe Size - Ins.(2” std)

M	F	Welded	Inlet Pipe Connections (Select One)
		Flange, ASA 150#
		Threaded NPT
		Mech. Joint w/transition sleeve

Elec. Cable Seal (S)

O.D. 3 Wire____O.D. Grounding Wire____

Special Provision (X)

UNITS AVAILABLE BY QUOTATION ONLY
5� THROUGH 36� TANK SIZES

EXPLANATION OF PITLESS BOOSTER
UNIT ORDERING NUMBERS

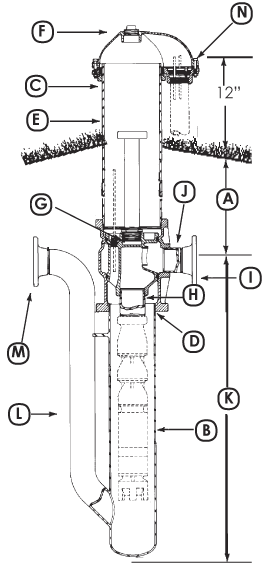

The diagram illustrates the meaning of the various letters and numerals used in Monitor Pitless Booster Unit ordering number. A typical order number and the pitless booster unit it stands for are shown.

Typical Order Number
6PS56TBWX02F262FS

6	A. This first numeral in the order number indicates the bury depth, in feet, of the unit. Bury depth on all units is measured from the center of the discharge line to ground level. The top of the pitless case extends 12” above ground level as is required by many codes.
PS	These letters indicate the type of pump the Pitless Booster Station is designed for. The unit shown is a PS for Submersible Pumps.
5	B. This numeral indicates the reservoir tank size. 5 is for an 5” I.D. diameter tank.
6	C. This numeral indicates the upper pitless case size, 6 is for a 6” diameter case.
T	D. This letter indicates the attachment to the reservoir tank is threaded.
B	E. The presence of the letter “B” in the order number indicates the upper pitless case is black pipe.
W	F. Indicates the unit has a watertight cap.
X	G. Indicates spool passages are closed.
0	This numeral indicates the type of spool which the pitless unit has. In this case it is a spool that has no check valves.
2	H. Indicates the size of drop pipe in inches.
F	I. Indicates the discharge connection is flanged.
2	J. Indicates the size of discharge pipe in inches.
6	K. Indicates the length of the reservoir tank in feet, and is measured from the center of the discharge line to the bottom of the unit.
2	L. lndicates the inlet pipe size in inches.
F	M. lndicates the inlet pipe connection is flanged.
S	N. Sealed conduit connection. (Optional)
