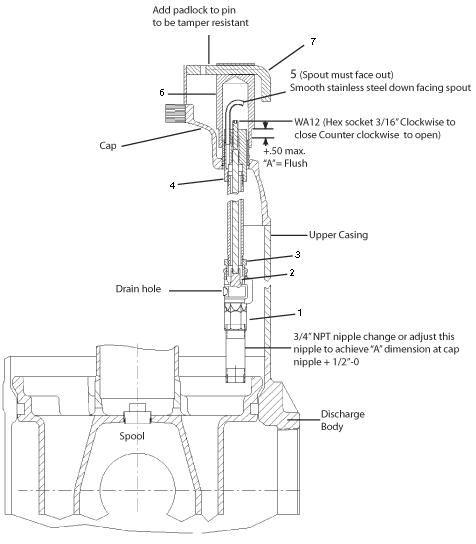

| CAP REMOVAL INSTRUCTIONS WHEN WATER SAMPLER VALVE IS INSTALLED. |
| STEP 1 |
|
Remove padlock from pin (item 7, WA9) and remove rod. |
| STEP 2 |
|
Remove cap (item 6, UN320A) and stainless steel nipple by unscrewing. |
| NOTE: |
|
Stainless nipple may remain attached to watertight cap, this is OK. |
| STEP 3 |
|
Remove watertight cap bolts and remove cap. |
| STEP 4 |
|
Reverse steps 3 through 1 to reinstall. |
|
|
|
| Item |
Qty |
Description |
Ord. No. |
1 |
1 |
Valve Body |
WA11 |
2 |
1 |
Poppet |
WA14 |
3 |
1 |
Hex Bushing |
WA13 |
4 |
1 |
Water Sampler Top |
WA8
|
5 |
1 |
Spout |
UK308
|
6 |
1 |
Cap |
UN320A |
7 |
1 |
Pin |
WA9 |
|
|
10" Custom Pitless
