26” CUSTOM PITLESS UNIT

Ordering Information

Custom Specifications

Parts Breakdown

DESCRIPTION - ORDERING NUMBERS

Bury Depth in Feet

Pitless Unit for Submersible Pump

Well Size - Ins.

Upper Case Size - Ins.

Attachment to Well Casing-Welded

Black Upper Case

Watertight Cap w/Screened Air Vent

Pressure Equalizing Spool Passages

Standard Spool

Drop Pipe I.D. Ins. (8”, 10” or 12”)

I		Threaded NPT Std. Connection	Discharge Connections (Select One)
	F	Flange, ASA 150#
		Welded
		Mech. Joint w/transition sleeve

Discharge I.D. Ins. (8”, 10” or 12”)

Elec. Cable Seal (S)

O.D. 3 Wire____O.D. Grounding Wire____

Water Sampler Valve (H)

Flowing Well (F)

Special Provision (X)

UNITS AVAILABLE BY QUOTATION ONLY
10” THROUGH 36” WELL SIZES

EXPLANATION OF PITLESS UNIT
ORDERING NUMBERS

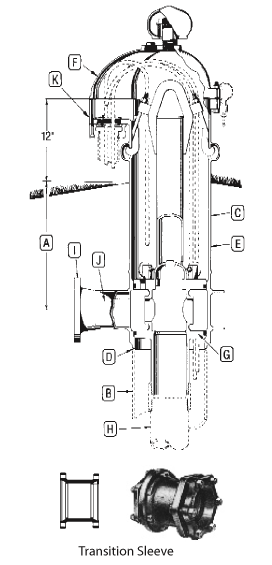

The diagram illustrates the meaning of the various letters and numerals used in Monitor Custom Industrial Pitless Unit ordering numbers. A typical order number and the pitless unit it stands for are shown.

Typical Order Number
3PS2628WBWE012F12S

3	A. The first numeral in the order number indicates the bury depth, in feet, of the unit. Bury depth on all units is measured from the center of the discharge line to ground level. The top of the pitless case extends 12” above ground level as is required by many codes.
PS	These letters indicate the type of pump the pitless unit is designed for. The unit shown is a PS for submersible pumps.
26	B. This numeral indicates the well casing size, 26 ” I.D.
28	C. This numeral indicates the upper pitless case size, 28 ” I.D.
W	D. Indicates the attachment to the well casing is a welded joint.
B	E. Indicates the upper pitless case is black pipe.
W	F. Indicates the unit has a watertight cap with screened vent installed.
E	G. Indicates spool has pressure equalizing passages, for venting well.
0	Indicates this type of spool has no check valves.
12	H. Indicates the size of drop pipe in inches.
F	I. Indicates the discharge connection is Flanged. Other options are Welded, Threaded and Mechanical Joint with transition sleeve.
12	J. Indicates the size of discharge pipe in inches.
S	K. Sealed Conduit Connection. (Optional)
