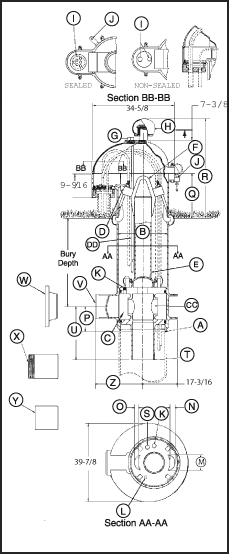

24” CUSTOM PITLESS SPECIFICATIONS



A Pitless Unit to well casing connection: Chamfered for butt weld.
B Pitless Unit with Black Upper Case: 25 " I.D., 26 " O.D.
C Discharge Body minimum I.D.: 23 ”
D Hold-Down Mechanism: Locks spool in place and prevents lifting and turning during pump start-up. Four adjustable hooks on lift-out pipe hook into side of pitless case.
DD Probe Tube is standard 1" PVC Pipe.
E Lift-Out Pipe: 8" IPS with standard lift-out bail.
F Lift-Out Bail: Lift-out pipe and bail assembly designed for a 218,000 lb. load.
G 2-1/2" NPT Tapping.
H Well Vent: Screws into a 2-1/2" NPT Tapping.
CAP CABLE SEALS (SECTION BB-BB)
I Conduit Tapping: 2" and 1" Std. Also available with single 2", 3", or 4" NPT. All tapping sizes available with or without electrical cable seal.
J Depth Tester Block Tappings: 1/4" NPT Std.
K Three 1" NPT Tapping ported to Drop Pipe.
L Pressure zone tapping: 3/8" NPT Std.
MOTOR CABLE PASSAGES THROUGH SPOOL
(SECTION AA-AA)
M 7-1/16"
N 3-7/16"
O 2-1/8"
P Dimension from center of Discharge Outlet to bottom of Discharge Body: 17-1/2"
Q Distance from ground level to top of the pitless case: 12"
R Distance from ground level to top of the vent cap: 29-7/16
(Vent Height may be increased if necessary).
S 3/4" NPT Tapping: used for optional Water Sampler.
T SPOOL TO DROP PIPE
THREAD SIZES:
8" NPT 10" NPT 12" NPT
U Dimension from center of discharge outlet to bottom of Spool: 18-13/16" 20-15/16" 22-15/16"
  DISCHARGE CONNECTIONS AND SIZES:
V For Butt Weld (IPS): 8" I.D. 10" I.D. 12" I.D.
W For Flanged (A.S.A. Std. 150 lb.): 8" I.D. 10" I.D. 12" I.D.
X For Threaded (NPT): 8" I.D. 10" I.D. 12" I.D.
Y For Transition Sleeve (IPS): 8" I.D. 10" I.D. 12" I.D.
Z Dimension from center of Well Casing to the end of Discharge Outlet.
With [V] Butt Weld Discharge: 32-1/2" 32-1/2" 24-7/16"
With [W] Flanged Discharge: 36-1/2" 36-1/2" 29"
With [X] Threaded Discharge: 36-1/2" 37-1/2" 31-1/2"
With [Y] Transition Sleeve: 44-1/2" 44-1/2" 36-1/2"
CC SPOOL ASSEMBLY - WITHOUT CHECK VALVES
Area of Water Passage(s): 120.26 sq." 120.26 sq." 120.26 sq."
Percent area of water passages to area of drop pipe 240% 152% 106%

Specifications are Subject to Change Without Notice.

Note: Pitless units conform to the Recommended Standards for Water works, Great Lakes Upper Mississippi River Board of State Public Health & Environmental Managers and Water Systems Council PAS-97 (04) Standards.



COMPONENT MATERIALS
Well Vent - cast iron, green enamel finish.
Cap - cast iron, green enamel finish.
Conduit Box - steel, corrosion resistant coating.
Electrical Cable Seal - cast iron, green enamel finish.
Combination Hold-Down & Lift-Out Mechanism - lead free galvanized.
Hold-Down Pipe - steel, corrosion resistant coating.
Pitless Case - steel, corrosion resistant coating.
Discharge Body - steel, lead free galvanized.
Spool - steel, lead free galvanized.
Probe Tube - 1” PVC

NOTE:
Any combination between Drop Pipe and Discharge Outlet size is possible, if required.

NOTE:
Maximum rated discharge pressure = 300 PSI
